IXYS-IXBL60N360 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	3600 V
Current - Collector (Ic) (Max):	92 A
Current - Collector Pulsed (Icm):	720 A
Vce(on) (Max) @ Vge, Ic:	3.4V @ 15V, 60A
Power - Max:	417 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	450 nC
Td (on/off) @ 25°C:	50ns/340ns
Test Condition:	960V, 60A, 4.7Ohm, 15V
Reverse Recovery Time (trr):	1.95 µs
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	ISOPLUSi5-Pak™
Supplier Device Package:	ISOPLUSi5-Pak™

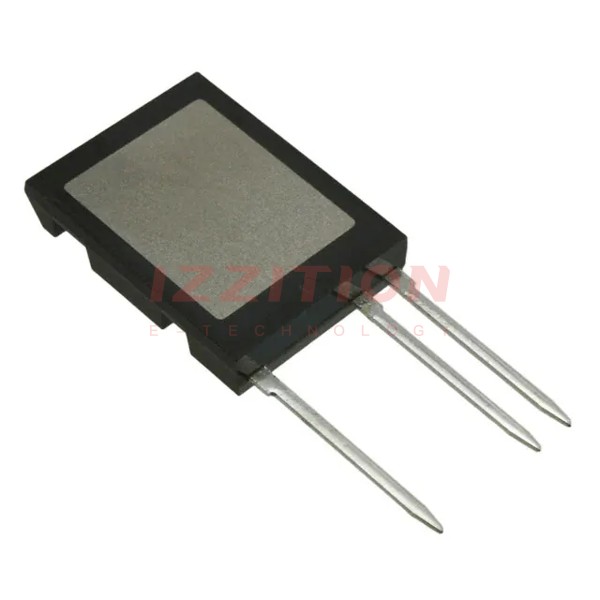

IXYS IXBL60N360
