IXYS-IXBL20N300C - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	3000 V
Current - Collector (Ic) (Max):	50 A
Current - Collector Pulsed (Icm):	430 A
Vce(on) (Max) @ Vge, Ic:	6V @ 15V, 20A
Power - Max:	417 W
Switching Energy:	23mJ (on), 2.6mJ (off)
Input Type:	Standard
Gate Charge:	425 nC
Td (on/off) @ 25°C:	33ns/370ns
Test Condition:	1500V, 20A, 3Ohm, 15V
Reverse Recovery Time (trr):	864 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	ISOPLUSi5-Pak™
Supplier Device Package:	ISOPLUSi5-Pak™

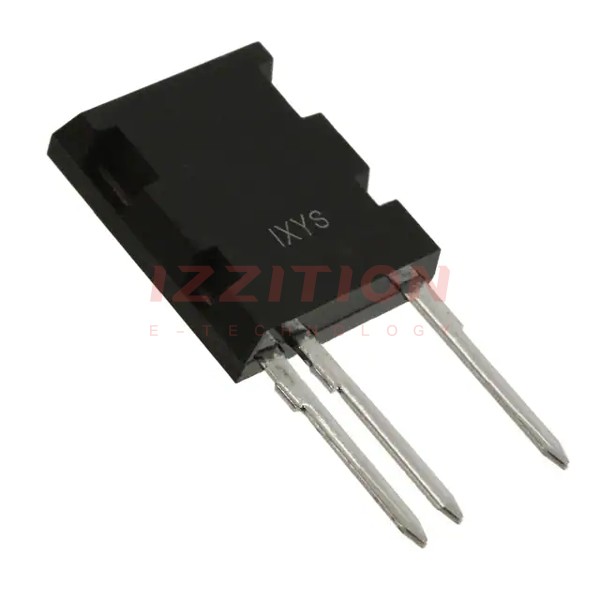

IXYS IXBL20N300C
