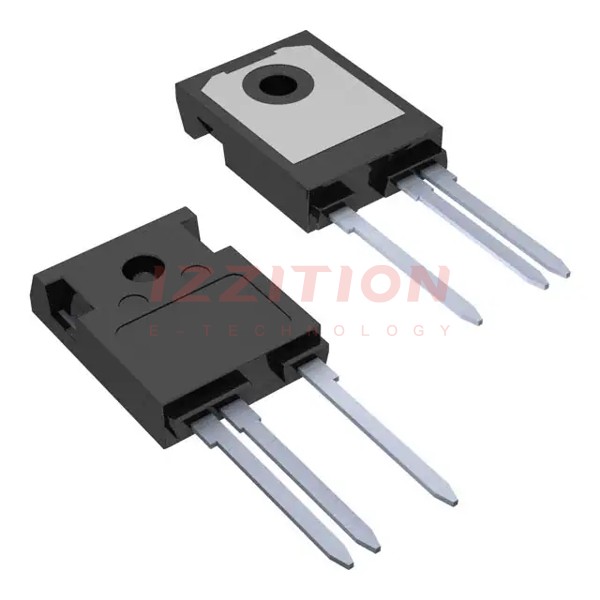

| Part Number | IXBH20N360HV | IXBT20N360HV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Not For New Designs |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 3600 V | 3600 V |
| Current - Collector (Ic) (Max) | 70 A | 70 A |
| Current - Collector Pulsed (Icm) | 220 A | 220 A |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 20A | 3.4V @ 15V, 20A |
| Power - Max | 430 W | 430 W |
| Switching Energy | 15.5mJ (on), 4.3mJ (off) | 15.5mJ (on), 4.3mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 110 nC | 110 nC |
| Td (on/off) @ 25°C | 18ns/238ns | 18ns/238ns |
| Test Condition | 1500V, 20A, 10Ohm, 15V | 1500V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 1.7 µs | 1.7 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | TO-247-3 Variant | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-247HV | TO-268AA |
