IXYS-IXBH10N300HV - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	3000 V
Current - Collector (Ic) (Max):	34 A
Current - Collector Pulsed (Icm):	88 A
Vce(on) (Max) @ Vge, Ic:	2.8V @ 15V, 10A
Power - Max:	180 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	46 nC
Td (on/off) @ 25°C:	36ns/100ns
Test Condition:	960V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr):	1.6 µs
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

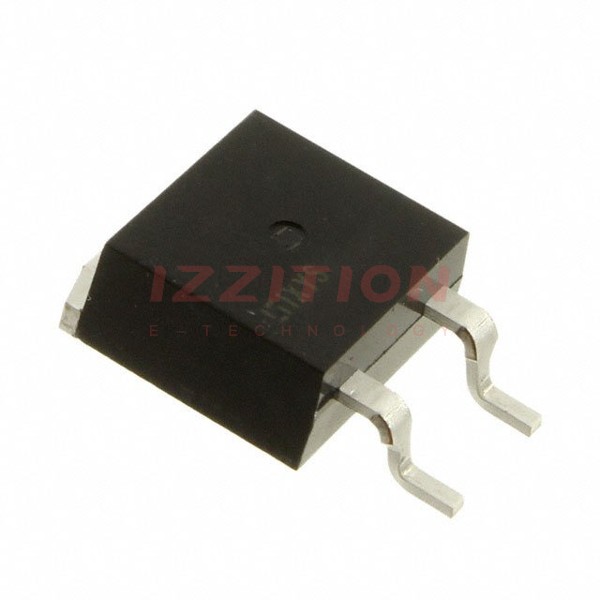

Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	TO-263HV

IXYS IXBH10N300HV
