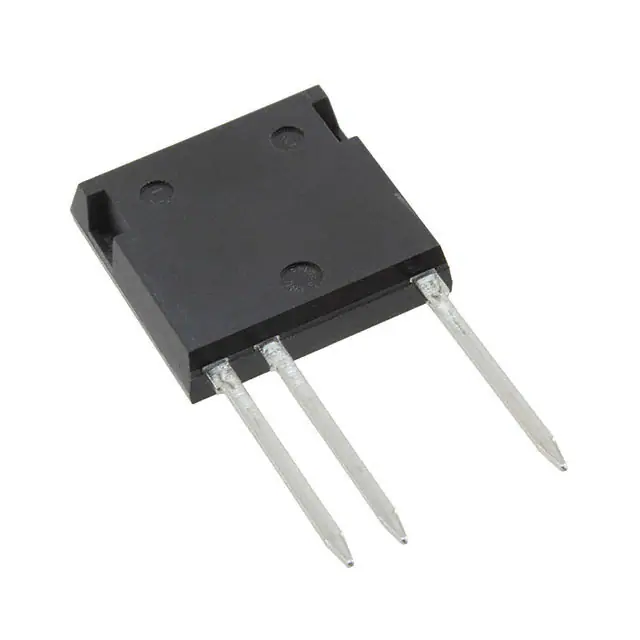

| Part Number | IXBF50N360 | IXBF20N360 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Not For New Designs | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 3600 V | 3600 V |
| Current - Collector (Ic) (Max) | 70 A | 45 A |
| Current - Collector Pulsed (Icm) | 420 A | 220 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 50A | 3.4V @ 15V, 20A |
| Power - Max | 290 W | 230 W |
| Switching Energy | - | 15.5mJ (on), 4.3mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 210 nC | 43 nC |
| Td (on/off) @ 25°C | 46ns/205ns | 18ns/238ns |
| Test Condition | 960V, 50A, 5Ohm, 15V | 1500V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 1.7 µs | 1.7 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | i4-Pac™-5 (3 Leads) | i4-Pac™-5 (3 Leads) |
| Supplier Device Package | ISOPLUS i4-PAC™ | ISOPLUS i4-PAC™ |
