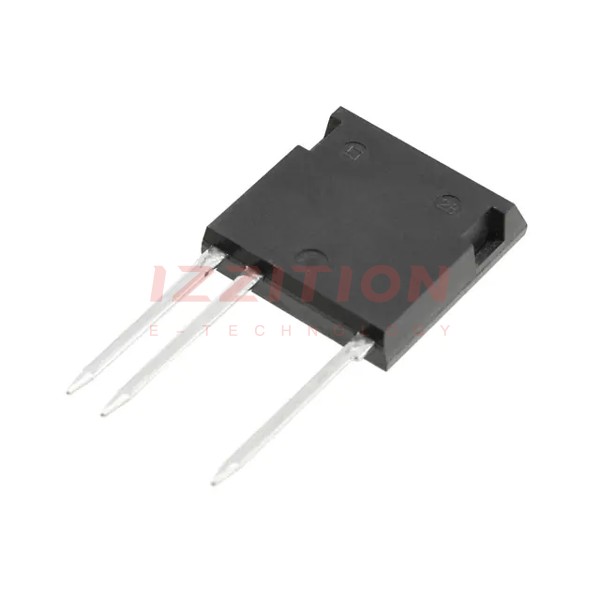

| Part Number | IXBF32N300 | IXBH32N300 | IXBT32N300 | IXBF12N300 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Discontinued at Digi-Key | Not For New Designs |
| IGBT Type | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V | 3000 V | 3000 V | 3000 V |
| Current - Collector (Ic) (Max) | 40 A | 80 A | 80 A | 26 A |
| Current - Collector Pulsed (Icm) | 250 A | 280 A | 280 A | 98 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 32A | 3.2V @ 15V, 32A | 3.2V @ 15V, 32A | 3.2V @ 15V, 12A |
| Power - Max | 160 W | 400 W | 400 W | 125 W |
| Switching Energy | - | - | - | - |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 142 nC | 142 nC | 142 nC | 62 nC |
| Td (on/off) @ 25°C | - | - | - | - |
| Test Condition | - | - | - | - |
| Reverse Recovery Time (trr) | 1.5 µs | 1.5 µs | 1.5 µs | 1.4 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | i4-Pac™-5 (3 Leads) | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | i4-Pac™-5 (3 Leads) |
| Supplier Device Package | ISOPLUS i4-PAC™ | TO-247AD | TO-268AA | ISOPLUS i4-PAC™ |
