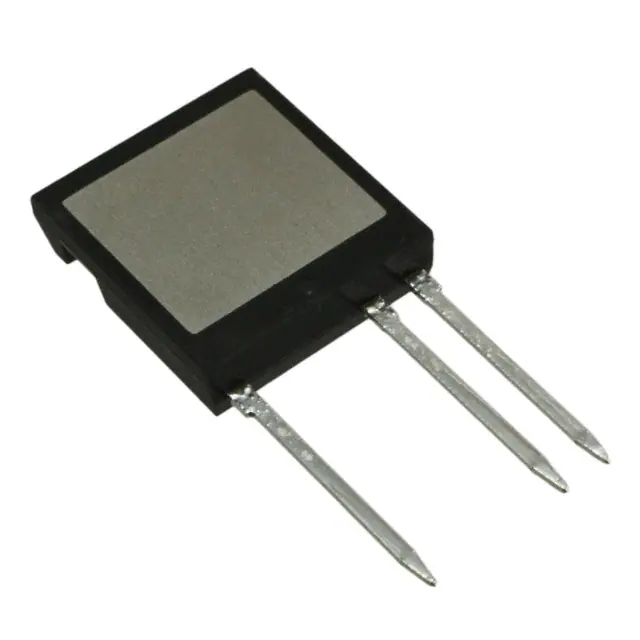

| Part Number | IXBF20N300 | IXBF20N360 | IXBH20N300 | IXBT20N300 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| IGBT Type | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V | 3600 V | 3000 V | 3000 V |
| Current - Collector (Ic) (Max) | 34 A | 45 A | 50 A | 50 A |
| Current - Collector Pulsed (Icm) | 150 A | 220 A | 140 A | 140 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 20A | 3.4V @ 15V, 20A | 3.2V @ 15V, 20A | 3.2V @ 15V, 20A |
| Power - Max | 150 W | 230 W | 250 W | 250 W |
| Switching Energy | - | 15.5mJ (on), 4.3mJ (off) | - | - |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 105 nC | 43 nC | 105 nC | 105 nC |
| Td (on/off) @ 25°C | - | 18ns/238ns | - | - |
| Test Condition | - | 1500V, 20A, 10Ohm, 15V | - | - |
| Reverse Recovery Time (trr) | 1.35 µs | 1.7 µs | 1.35 µs | 1.35 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | i4-Pac™-5 (3 Leads) | i4-Pac™-5 (3 Leads) | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | ISOPLUS i4-PAC™ | ISOPLUS i4-PAC™ | TO-247AD | TO-268AA |
