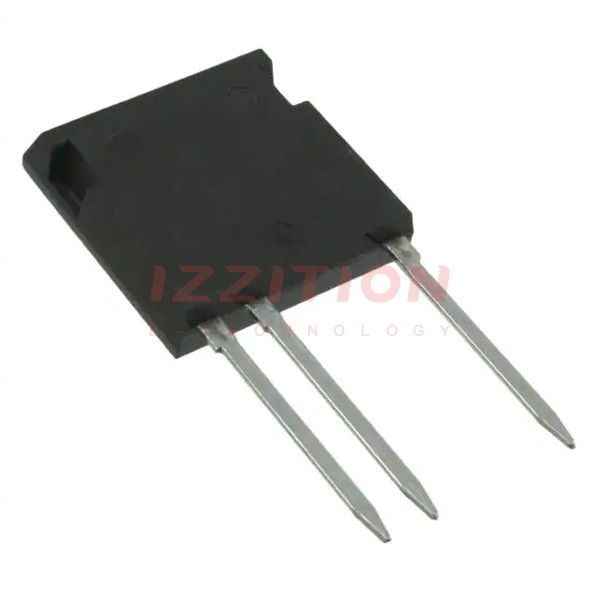

| Part Number | IXBF10N300C | IXBF15N300C |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V | 3000 V |
| Current - Collector (Ic) (Max) | 29 A | 37 A |
| Current - Collector Pulsed (Icm) | 240 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 6V @ 15V, 10A | 6V @ 15V, 15A |
| Power - Max | 240 W | 300 W |
| Switching Energy | 7.2mJ (on), 1.04mJ (off) | 9.15mJ (on), 1.4mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 208 nC | 267 nC |
| Td (on/off) @ 25°C | 32ns/390ns | 40ns/455ns |
| Test Condition | 1500V, 10A, 10Ohm, 15V | 1500V, 15A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 700 ns | 706 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | i4-Pac™-5 (3 Leads) | i4-Pac™-5 (3 Leads) |
| Supplier Device Package | ISOPLUS i4-PAC™ | ISOPLUS i4-PAC™ |
