IXYS-IXA70R1200NA - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	100 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 50A
Power - Max:	350 W
Switching Energy:	4.5mJ (on), 5.5mJ (off)
Input Type:	Standard
Gate Charge:	190 nC
Td (on/off) @ 25°C:	70ns/250ns
Test Condition:	600V, 50A, 15Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227B

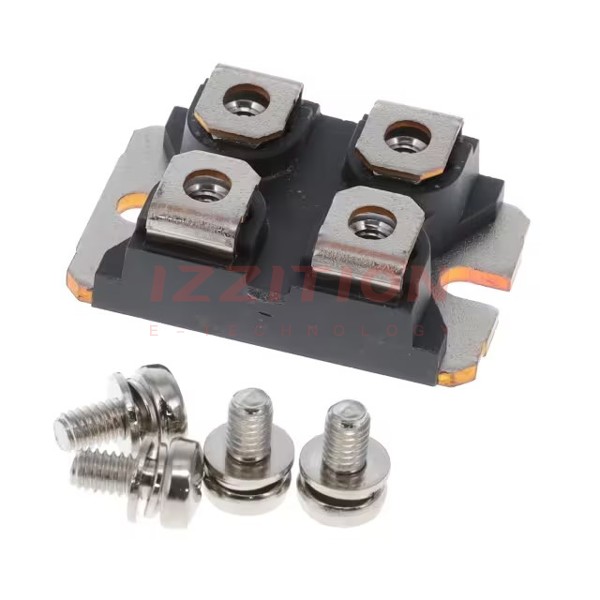

IXYS IXA70R1200NA
