Please send RFQ , we will respond immediately.

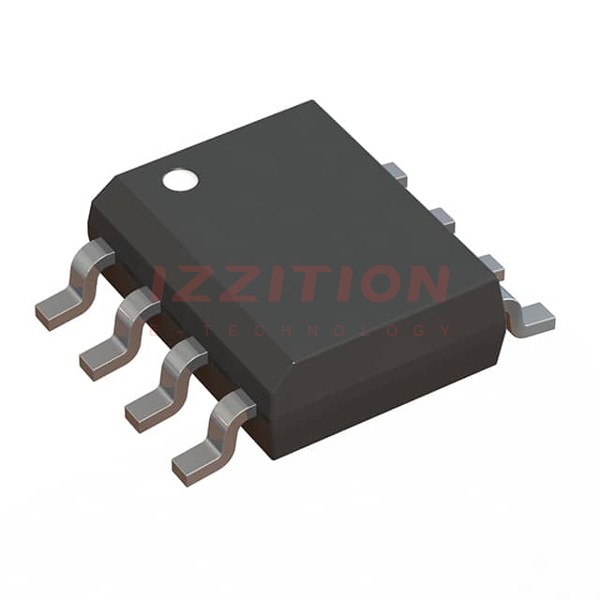

| Part Number | IX2127N | IX2127G |
|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division |
| Product Status | Obsolete | Obsolete |
| Driven Configuration | High-Side | High-Side |
| Channel Type | Single | Single |
| Number of Drivers | 1 | 1 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 9V ~ 12V | 9V ~ 12V |
| Logic Voltage - VIL, VIH | 0.8V, 3V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | 250mA, 500mA |
| Input Type | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V |
| Rise / Fall Time (Typ) | 23ns, 20ns | 23ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-SOIC | 8-DIP |
