IXYS-FMP26-02P - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	200V
Current - Continuous Drain (Id) @ 25°C:	26A, 17A
Rds On (Max) @ Id, Vgs:	60mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	70nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	2720pF @ 25V
Power - Max:	125W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	i4-Pac™-5
Supplier Device Package:	ISOPLUS i4-PAC™

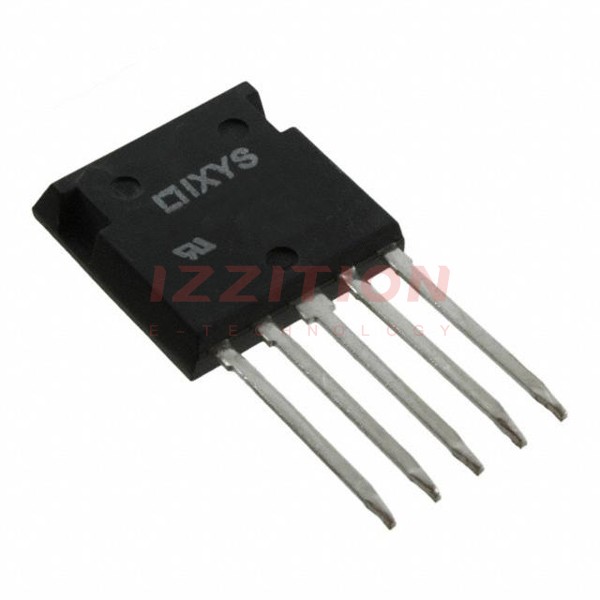

IXYS FMP26-02P
