IXYS-E1780TG65E - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	3600 V
Current - Average Rectified (Io):	1780A
Voltage - Forward (Vf) (Max) @ If:	3.83 V @ 1.78 kA
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	1.22 µs
Current - Reverse Leakage @ Vr:	100 mA @ 3600 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis Mount
Package / Case:	TO-200AF
Supplier Device Package:	-
Operating Temperature - Junction:	-40°C ~ 140°C

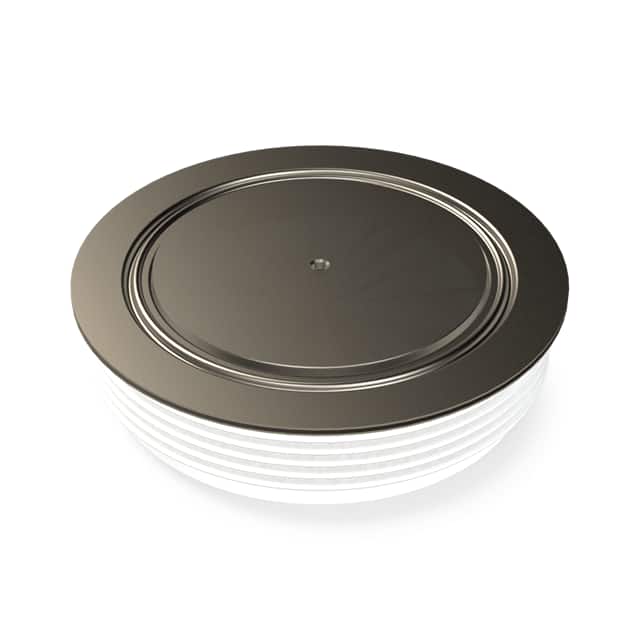

IXYS E1780TG65E
