IXYS-DSSS35-008AR - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io) (per Diode):	35A
Voltage - Forward (Vf) (Max) @ If:	790 mV @ 35 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	4 mA @ 80 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Through Hole

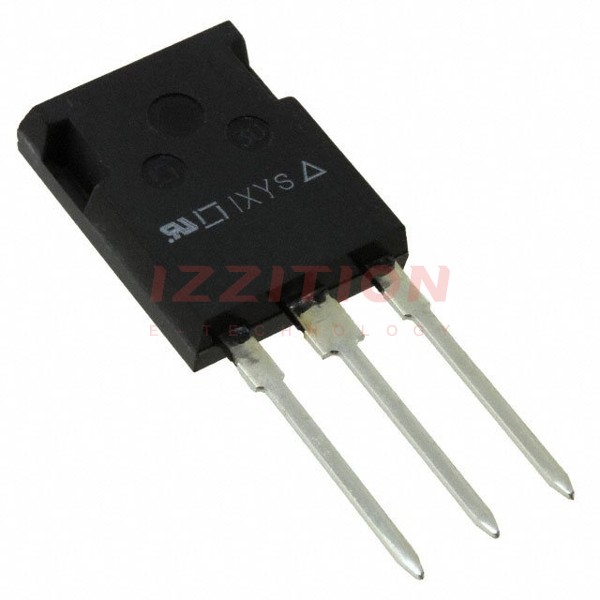

Package / Case:	TO-247-3
Supplier Device Package:	ISOPLUS247™

IXYS DSSS35-008AR
