IXYS-DSSK80-0008D - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	8 V
Current - Average Rectified (Io) (per Diode):	40A
Voltage - Forward (Vf) (Max) @ If:	340 mV @ 40 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 mA @ 8 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD

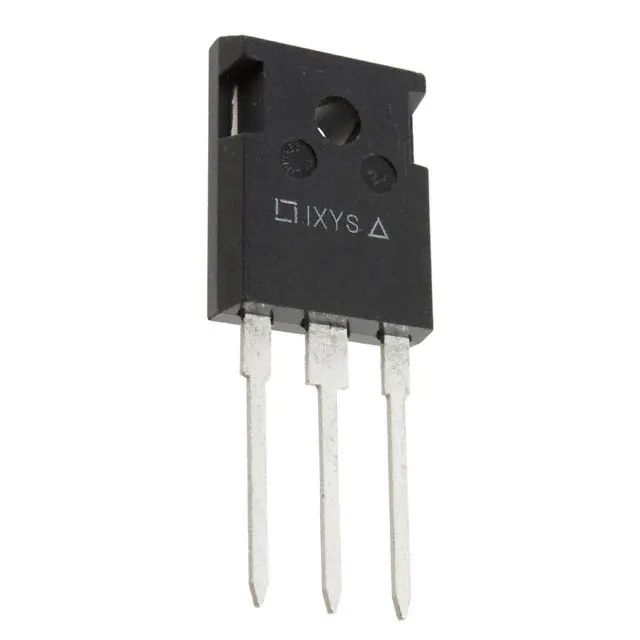

IXYS DSSK80-0008D
