Please send RFQ , we will respond immediately.

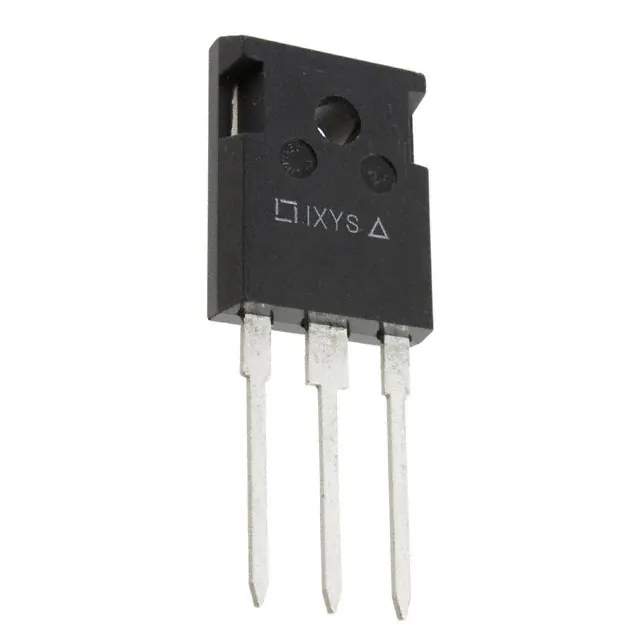

| Part Number | DSSK60-02A | DSSK60-02AR | DSEK60-02A |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Obsolete | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V | 200 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 30A | 34A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 30 A | 850 mV @ 30 A | 1.1 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | 50 ns |
| Current - Reverse Leakage @ Vr | 2 mA @ 200 V | 2 mA @ 200 V | 200 µA @ 200 V |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -40°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AD | ISOPLUS247™ | TO-247AD |
