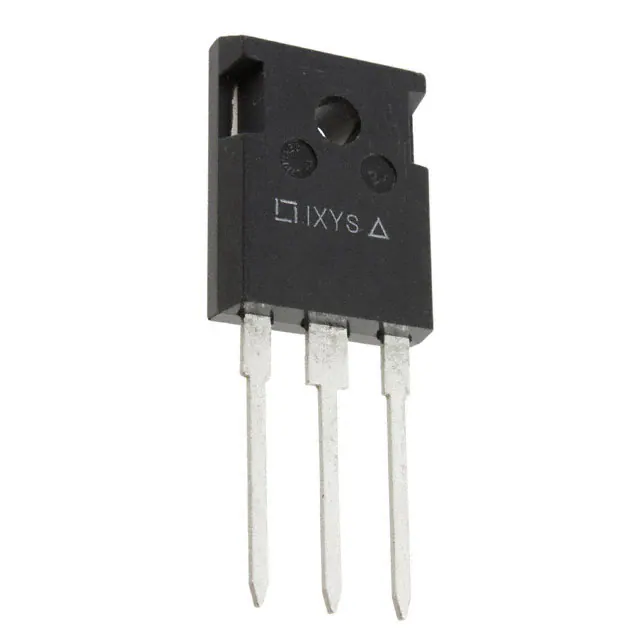

| Part Number | DSSK30-018A | DSSK30-01A | DSSK10-018A |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 180 V | 100 V | 180 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 15A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 860 mV @ 15 A | 780 mV @ 15 A | 780 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 300 µA @ 180 V | 500 µA @ 100 V | 300 µA @ 180 V |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-220-3 |
| Supplier Device Package | TO-247AD | TO-247AD | TO-220-3 |
