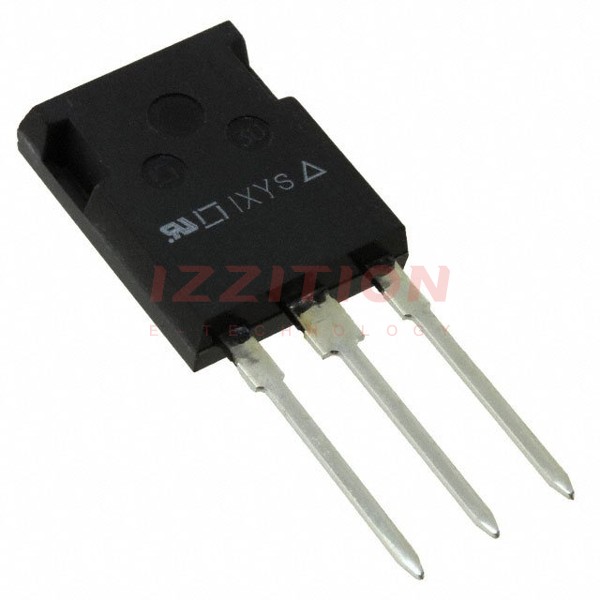

IXYS-DSIK45-16AR - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1600 V
Current - Average Rectified (Io) (per Diode):	45A
Voltage - Forward (Vf) (Max) @ If:	1.22 V @ 40 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	3 mA @ 1600 V
Operating Temperature - Junction:	-40°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	ISOPLUS247™

IXYS DSIK45-16AR
