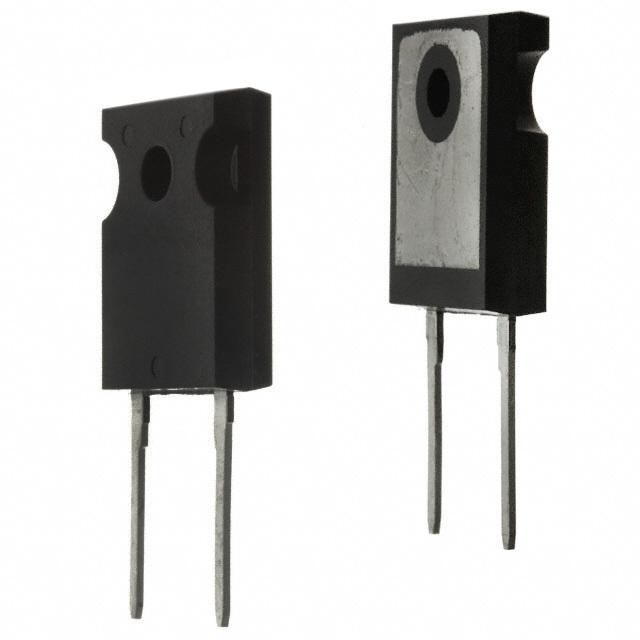

| Part Number | DSI45-16A | DSI45-16AR | DSI45-12A |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1600 V | 1200 V |
| Current - Average Rectified (Io) | 45A | 48A | 45A |
| Voltage - Forward (Vf) (Max) @ If | 1.28 V @ 45 A | 1.18 V @ 40 A | 1.28 V @ 45 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 20 µA @ 1600 V | 3 mA @ 1600 V | 20 µA @ 1200 V |
| Capacitance @ Vr, F | - | - | 18pF @ 400V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-3 | TO-247-2 |
| Supplier Device Package | TO-247AD | ISOPLUS247™ | TO-247AD |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C |
