IXYS-DSI45-08A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	800 V
Current - Average Rectified (Io):	45A
Voltage - Forward (Vf) (Max) @ If:	1.28 V @ 45 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	20 µA @ 800 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247AD
Operating Temperature - Junction:	-40°C ~ 175°C

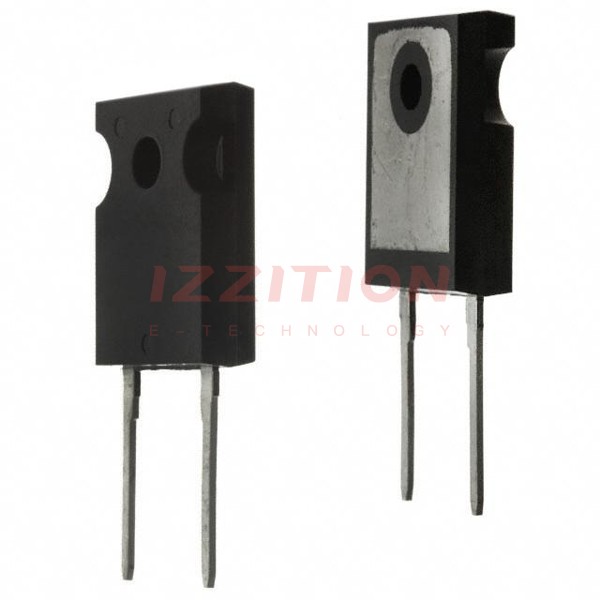

IXYS DSI45-08A
