IXYS-DSEP75-06AR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	75A
Voltage - Forward (Vf) (Max) @ If:	2.02 V @ 75 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	35 ns
Current - Reverse Leakage @ Vr:	1 mA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	ISOPLUS247™
Operating Temperature - Junction:	-55°C ~ 175°C

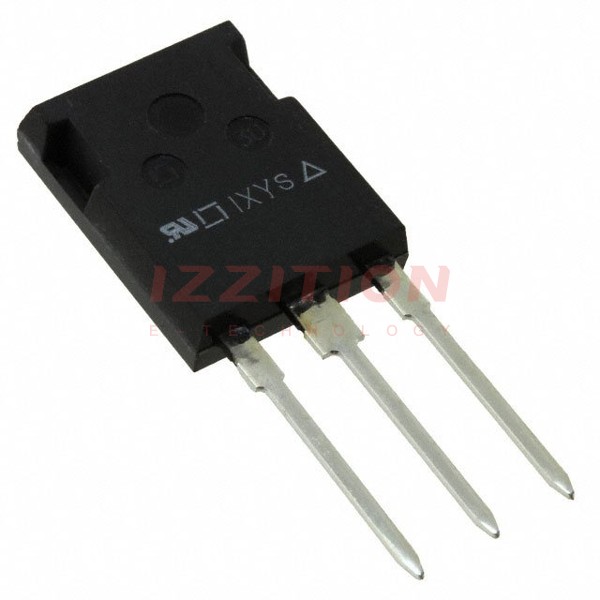

IXYS DSEP75-06AR
