IXYS-DSEP60-025A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	250 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	1.31 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	30 ns
Current - Reverse Leakage @ Vr:	650 µA @ 250 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247AD
Operating Temperature - Junction:	-55°C ~ 175°C

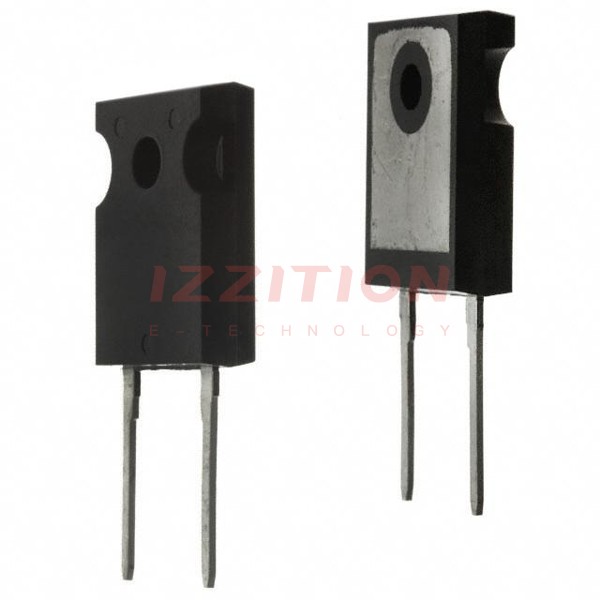

IXYS DSEP60-025A
