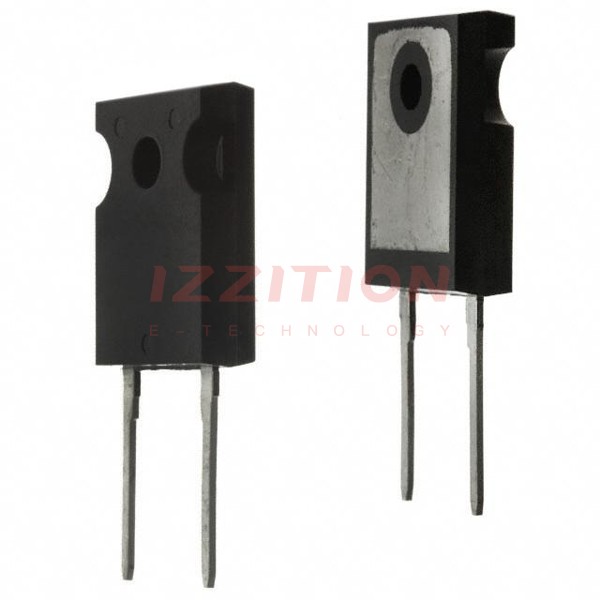

| Part Number | DSEP30-12A | DSEP30-12B | DSEP30-12AR | DSEP60-12A | DSEI30-12A |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 30A | 30A | 30A | 60A | 26A |
| Voltage - Forward (Vf) (Max) @ If | 2.74 V @ 30 A | 3.75 V @ 30 A | 2.74 V @ 30 A | 2.66 V @ 60 A | 2.55 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns | - | 40 ns | 40 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 1200 V | 100 µA @ 1200 V | 250 µA @ 1200 V | 650 µA @ 1200 V | 750 µA @ 1200 V |
| Capacitance @ Vr, F | - | 12pF @ 600V, 1MHz | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-3 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247AD | TO-247 | ISOPLUS247™ | TO-247AD | TO-247AD |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -40°C ~ 150°C |
