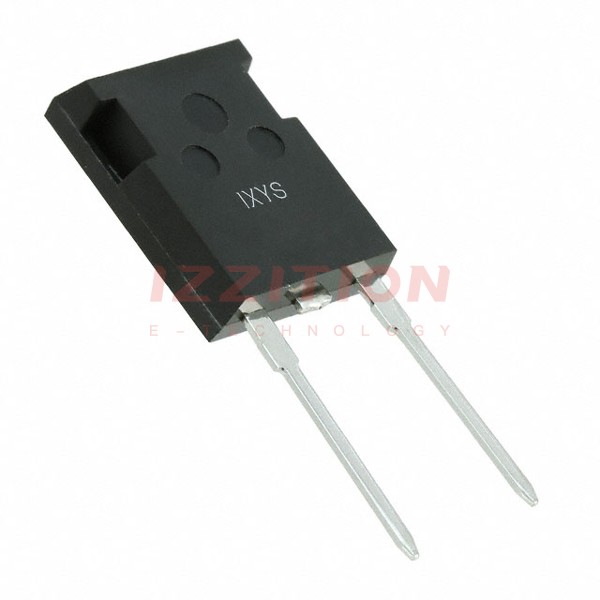

| Part Number | DSEP30-06BR | DSEP30-06CR | DSEP30-06B |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Obsolete | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 30A | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 2.51 V @ 30 A | 3.07 V @ 30 A | 2.51 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 15 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V | 250 µA @ 600 V | 250 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | ISOPLUS247™ | TO-247-3 | ISOPLUS247™ |
| Supplier Device Package | ISOPLUS247™ (BR) | ISOPLUS247™ | ISOPLUS247™ (BR) |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
