IXYS-DSEP30-06A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	DSEP30-06A	DSEP60-06A	DSEP30-06B	DSEI30-06A	DSEP30-03A	DSEP30-04A
Manufacturer	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS
Product Status	Active	Active	Active	Active	Obsolete	Obsolete
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	600 V	600 V	600 V	600 V	300 V	400 V
Current - Average Rectified (Io)	30A	60A	30A	37A	30A	30A
Voltage - Forward (Vf) (Max) @ If	1.6 V @ 30 A	2.04 V @ 60 A	2.51 V @ 30 A	1.6 V @ 37 A	1.55 V @ 30 A	1.46 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	35 ns	35 ns	30 ns	50 ns	25 ns	30 ns
Current - Reverse Leakage @ Vr	250 µA @ 600 V	650 µA @ 600 V	250 µA @ 600 V	100 µA @ 600 V	250 µA @ 300 V	250 µA @ 400 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-2	TO-247-2	ISOPLUS247™	TO-247-2	TO-247-2	TO-247-2
Supplier Device Package	TO-247AD	TO-247AD	ISOPLUS247™ (BR)	TO-247AD	TO-247AD	TO-247AD
Operating Temperature - Junction	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-40°C ~ 150°C	-55°C ~ 175°C	-55°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	1.6 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	35 ns
Current - Reverse Leakage @ Vr:	250 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247AD
Operating Temperature - Junction:	-55°C ~ 175°C

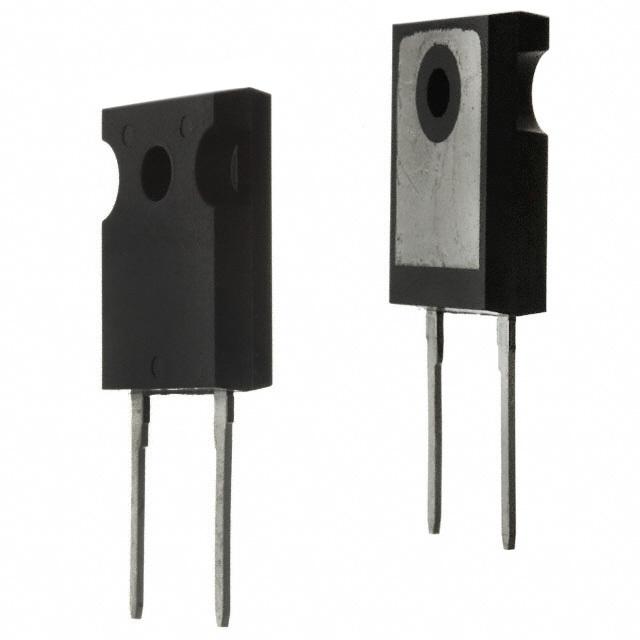

IXYS DSEP30-06A
