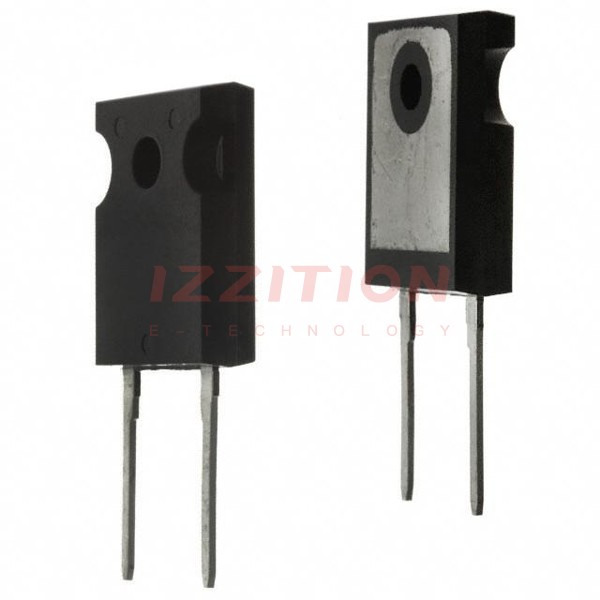

| Part Number | DSEP30-03A | DSEP30-06A | DSEP30-04A | DSEP30-03AS |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Obsolete | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V | 600 V | 400 V | 300 V |
| Current - Average Rectified (Io) | 30A | 30A | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 30 A | 1.6 V @ 30 A | 1.46 V @ 30 A | 1.55 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns | 35 ns | 30 ns | 22 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 300 V | 250 µA @ 600 V | 250 µA @ 400 V | 250 µA @ 300 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 | TO-3P-3 Full Pack |
| Supplier Device Package | TO-247AD | TO-247AD | TO-247AD | TO-247AD |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | 175°C (Max) |
