IXYS-DSEP2X35-06C - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	2 Independent
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io) (per Diode):	35A
Voltage - Forward (Vf) (Max) @ If:	2.5 V @ 35 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	20 ns
Current - Reverse Leakage @ Vr:	250 µA @ 600 V
Operating Temperature - Junction:	-
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227B

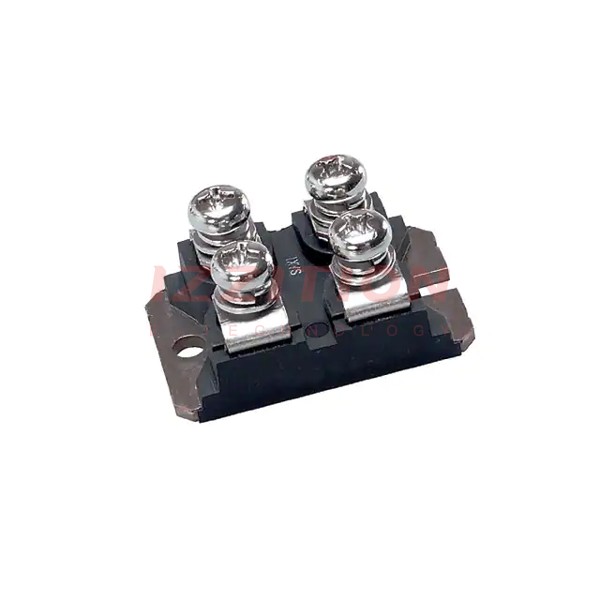

IXYS DSEP2X35-06C
