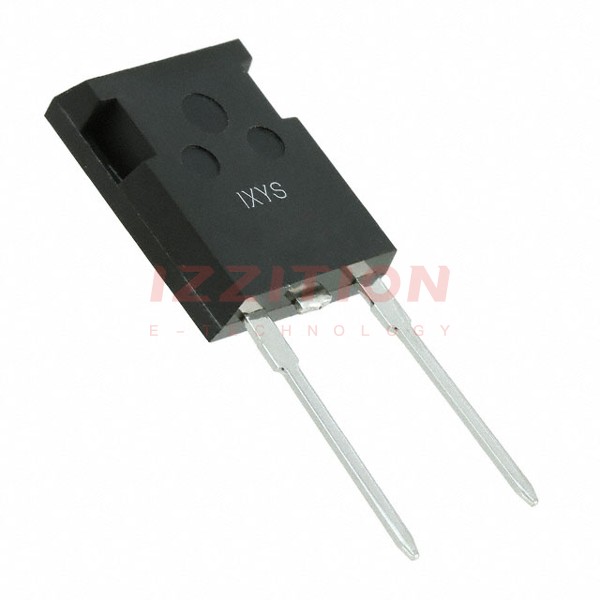

IXYS-DSEP15-12CR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	15A
Voltage - Forward (Vf) (Max) @ If:	4.04 V @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	20 ns
Current - Reverse Leakage @ Vr:	100 µA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	ISOPLUS247™
Operating Temperature - Junction:	-55°C ~ 175°C

IXYS DSEP15-12CR
