IXYS-DSEI60-12A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	DSEI60-12A	DSEP60-12A	DSEI20-12A	DSEI30-12A	DSEI60-02A	DSEI60-10A
Manufacturer	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS
Product Status	Active	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V	1200 V	1200 V	1200 V	200 V	1000 V
Current - Average Rectified (Io)	52A	60A	17A	26A	69A	60A
Voltage - Forward (Vf) (Max) @ If	2.55 V @ 60 A	2.66 V @ 60 A	2.15 V @ 12 A	2.55 V @ 30 A	1.08 V @ 60 A	2.3 V @ 60 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	60 ns	40 ns	60 ns	60 ns	50 ns	50 ns
Current - Reverse Leakage @ Vr	2.2 mA @ 1200 V	650 µA @ 1200 V	750 µA @ 1200 V	750 µA @ 1200 V	50 µA @ 200 V	3 mA @ 1000 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-2	TO-247-2	TO-220-2	TO-247-2	TO-247-2	TO-247-2
Supplier Device Package	TO-247AD	TO-247AD	TO-220AC	TO-247AD	TO-247AD	TO-247AD
Operating Temperature - Junction	-40°C ~ 150°C	-55°C ~ 175°C	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	52A
Voltage - Forward (Vf) (Max) @ If:	2.55 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	2.2 mA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247AD
Operating Temperature - Junction:	-40°C ~ 150°C

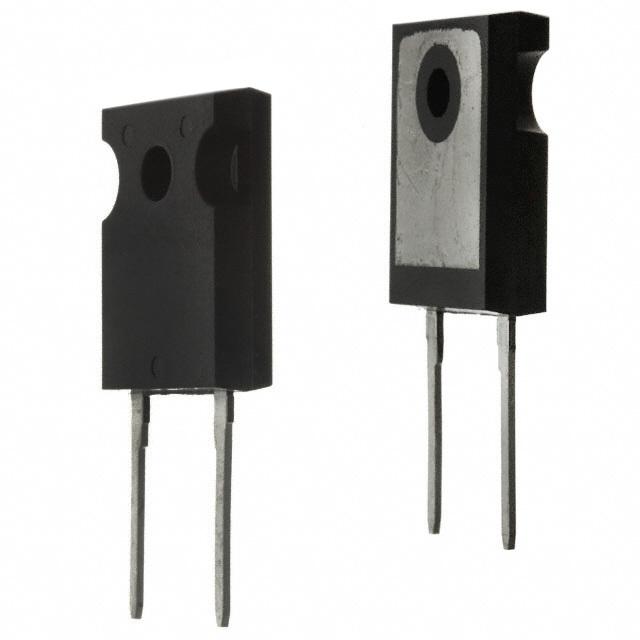

IXYS DSEI60-12A
