| Part Number | DSEI60-06A | DSEP60-06A | DSEI30-06A | DSEI60-02A |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 200 V |
| Current - Average Rectified (Io) | 60A | 60A | 37A | 69A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 70 A | 2.04 V @ 60 A | 1.6 V @ 37 A | 1.08 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 35 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 600 V | 650 µA @ 600 V | 100 µA @ 600 V | 50 µA @ 200 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

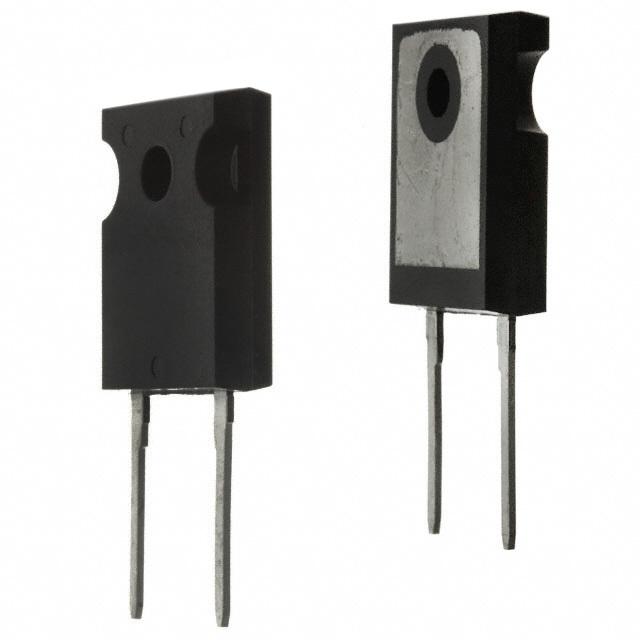

| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247AD | TO-247AD | TO-247AD | TO-247AD |
| Operating Temperature - Junction | -40°C ~ 150°C | -55°C ~ 175°C | -40°C ~ 150°C | -40°C ~ 150°C |
