Please send RFQ , we will respond immediately.

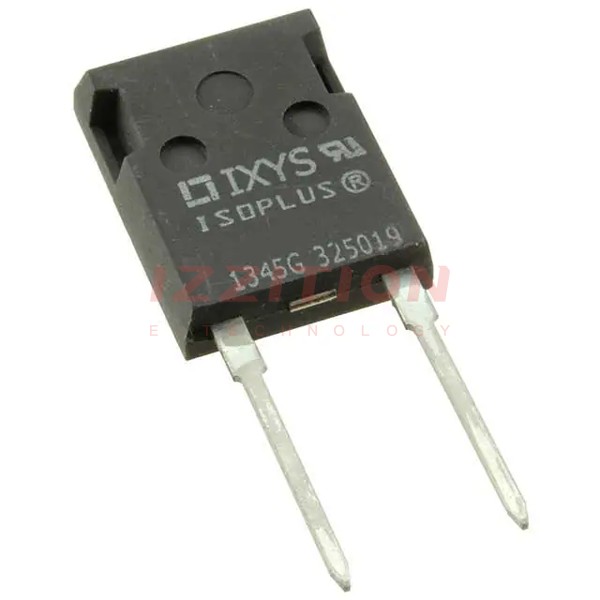

| Part Number | DSEI30-10AR | DSEI30-10A |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V | 1000 V |
| Current - Average Rectified (Io) | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 36 A | 2.4 V @ 36 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 750 µA @ 1000 V | 750 µA @ 1000 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-2 |
| Supplier Device Package | ISOPLUS247™ | TO-247AD |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C |
