Please send RFQ , we will respond immediately.

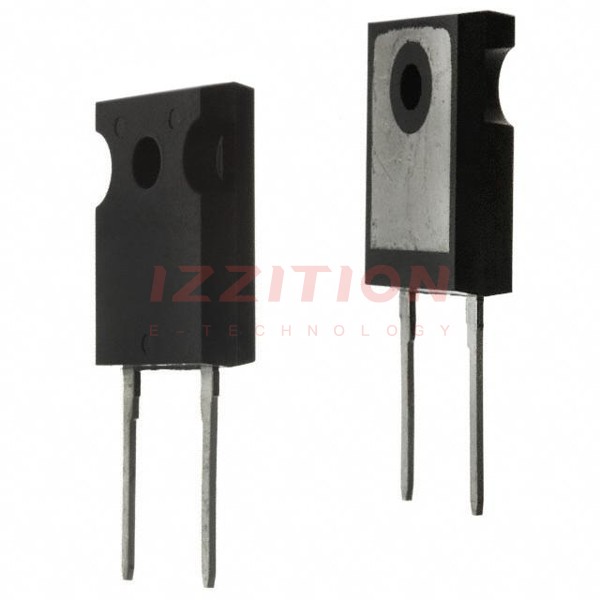

| Part Number | DSEI30-10A | DSEI60-10A | DSEI30-12A | DSEI30-10AR |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V | 1000 V | 1200 V | 1000 V |
| Current - Average Rectified (Io) | 30A | 60A | 26A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 36 A | 2.3 V @ 60 A | 2.55 V @ 30 A | 2.4 V @ 36 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 50 ns | 60 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 750 µA @ 1000 V | 3 mA @ 1000 V | 750 µA @ 1200 V | 750 µA @ 1000 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 | TO-247-3 |
| Supplier Device Package | TO-247AD | TO-247AD | TO-247AD | ISOPLUS247™ |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
