IXYS-DSEI25-06A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	25A
Voltage - Forward (Vf) (Max) @ If:	1.31 V @ 25 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	100 µA @ 600 V
Capacitance @ Vr, F:	20pF @ 400V, 1MHz
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220-2
Operating Temperature - Junction:	-40°C ~ 150°C

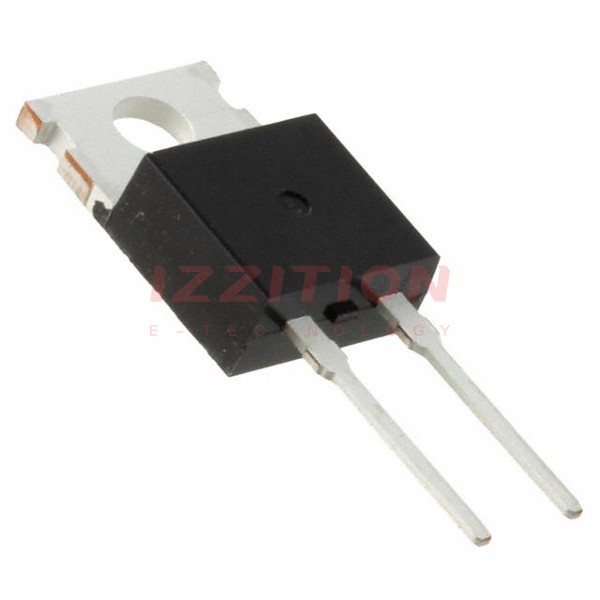

IXYS DSEI25-06A
