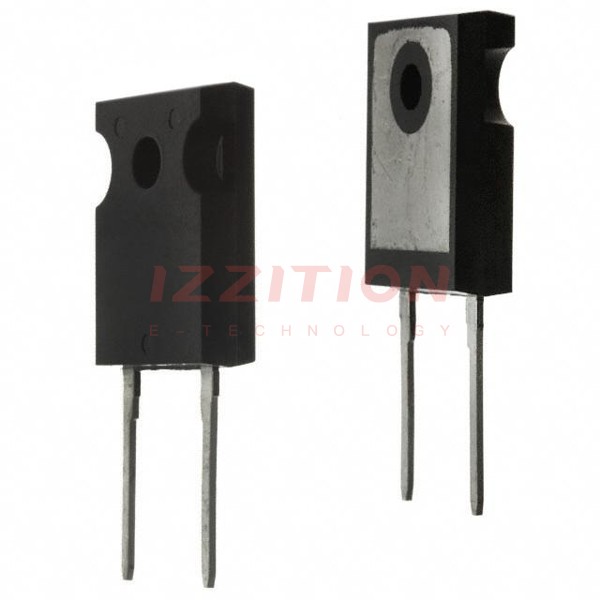

| Part Number | DSEI120-12A | DSEI20-12A | DSEI12-12A |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 75A | 17A | 11A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 70 A | 2.15 V @ 12 A | 2.6 V @ 12 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns | 60 ns | 70 ns |
| Current - Reverse Leakage @ Vr | 3 mA @ 1200 V | 750 µA @ 1200 V | 250 µA @ 1200 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | TO-247AD | TO-220AC | TO-220AC |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
