IXYS-DSEE55-24N1F - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io) (per Diode):	60A
Voltage - Forward (Vf) (Max) @ If:	2.45 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	220 ns
Current - Reverse Leakage @ Vr:	1 mA @ 1200 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	i4-Pac™-3
Supplier Device Package:	i4-PAC™

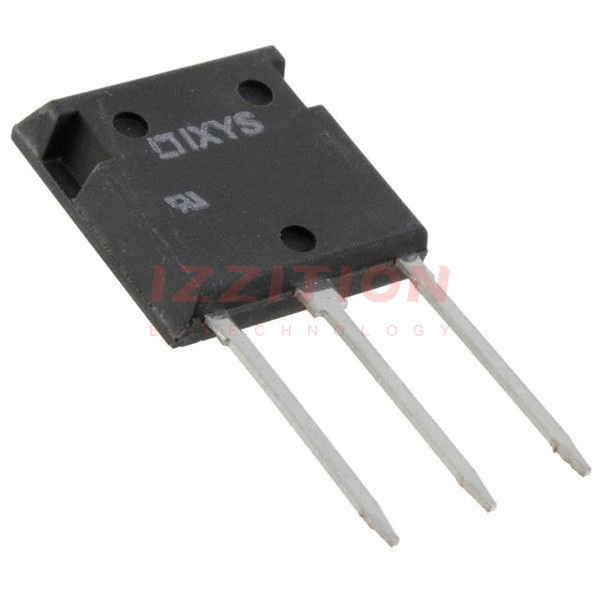

IXYS DSEE55-24N1F
