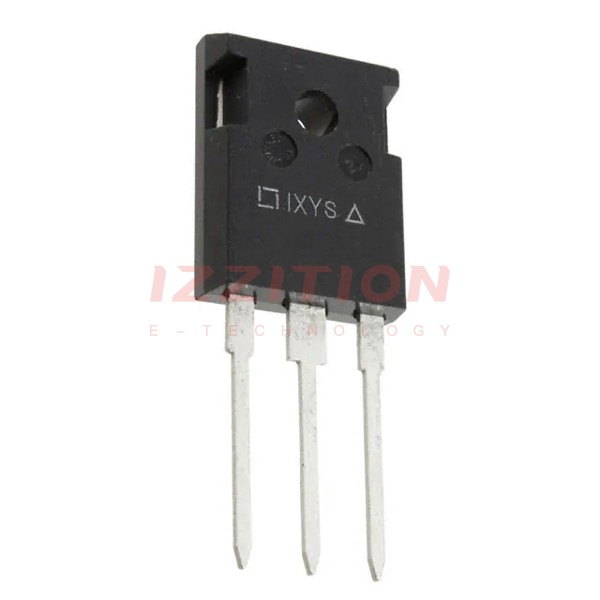

| Part Number | DSEC60-02A | DSEC60-06A | DSEC60-12A | DSEK60-02A | DSEC60-02AQ | DSEC60-03A | DSEC60-04A | DSEC30-02A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 600 V | 1200 V | 200 V | 200 V | 300 V | 400 V | 200 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 30A | 30A | 34A | 30A | 30A | 30A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 30 A | 1.6 V @ 30 A | 2.74 V @ 30 A | 1.1 V @ 30 A | 1.2 V @ 30 A | 1.25 V @ 30 A | 1.49 V @ 30 A | 1.05 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns | 35 ns | 40 ns | 50 ns | 25 ns | 30 ns | 30 ns | 25 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V | 250 µA @ 600 V | 250 µA @ 1200 V | 200 µA @ 200 V | 3 µA @ 200 V | 10 µA @ 300 V | 250 µA @ 400 V | 100 µA @ 200 V |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -40°C ~ 150°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-3P-3, SC-65-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AD | TO-247AD | TO-247AD | TO-247AD | TO-3P | TO-247AD | TO-247AD | TO-247AD |
