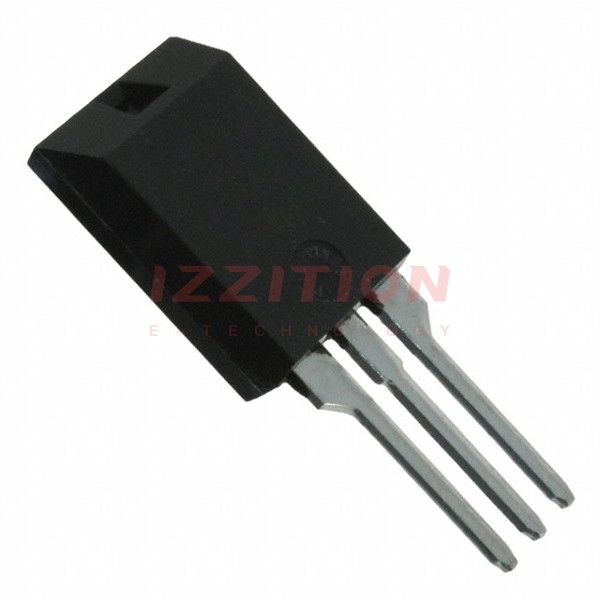

IXYS-DSEC59-06BC - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io) (per Diode):	30A
Voltage - Forward (Vf) (Max) @ If:	2.51 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	30 ns
Current - Reverse Leakage @ Vr:	250 µA @ 600 V
Operating Temperature - Junction:	-40°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	ISOPLUS220™
Supplier Device Package:	ISOPLUS220™

IXYS DSEC59-06BC
