Please send RFQ , we will respond immediately.

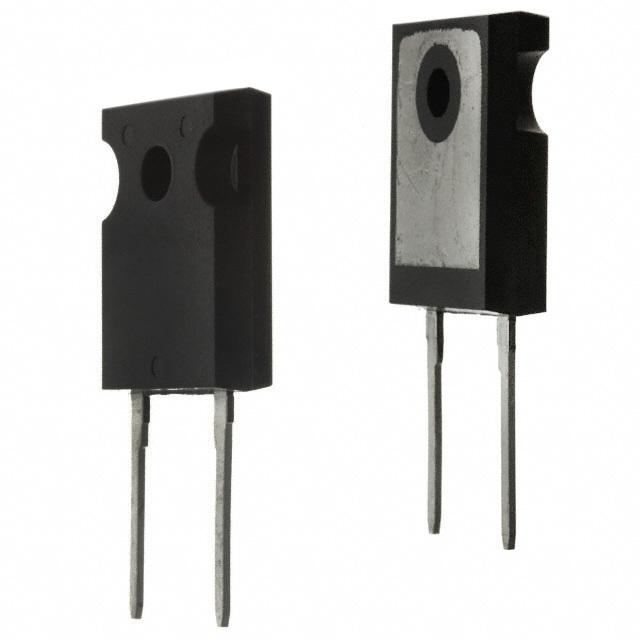

| Part Number | DSDI60-16A | DSDI60-18A | DSDI60-14A |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1800 V | 1400 V |
| Current - Average Rectified (Io) | 63A | 63A | 63A |
| Voltage - Forward (Vf) (Max) @ If | 4.1 V @ 70 A | 4.1 V @ 70 A | 4.1 V @ 70 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 300 ns | 300 ns | 300 ns |
| Current - Reverse Leakage @ Vr | 2 mA @ 1600 V | 2 mA @ 1800 V | 2 mA @ 1400 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247AD | TO-247AD | TO-247AD |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
