| Part Number | DSAI35-16A | DSA35-16A | DSAI35-12A |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Avalanche | Avalanche | Avalanche |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1600 V | 1200 V |
| Current - Average Rectified (Io) | 49A | 49A | 49A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 150 A | 1.55 V @ 150 A | 1.55 V @ 150 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 4 mA @ 1600 V | 4 mA @ 1600 V | 4 mA @ 1200 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount |

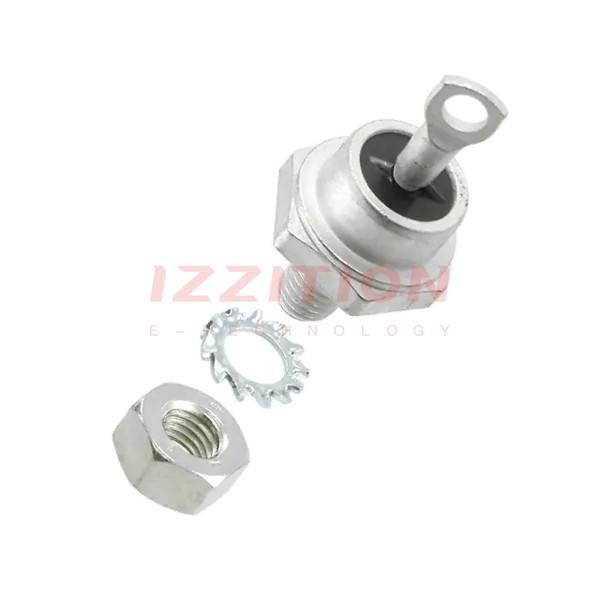

| Package / Case | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud |
| Supplier Device Package | DO-203AB | DO-203AB | DO-203AB |
| Operating Temperature - Junction | -40°C ~ 180°C | -40°C ~ 180°C | -40°C ~ 180°C |
