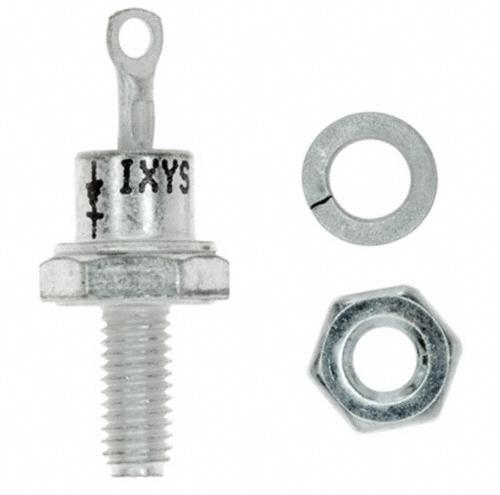

| Part Number | DSA9-16F | DSA9-18F | DSA9-12F |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Avalanche | Avalanche | Avalanche |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1800 V | 1200 V |
| Current - Average Rectified (Io) | 11A | 11A | 11A |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 36 A | 1.4 V @ 36 A | 1.4 V @ 36 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 3 mA @ 1600 V | 3 mA @ 1800 V | 3 mA @ 1200 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | DO-203AA, DO-4, Stud | DO-203AA, DO-4, Stud | DO-203AA, DO-4, Stud |
| Supplier Device Package | DO-203AA | DO-203AA | DO-203AA |
| Operating Temperature - Junction | -40°C ~ 180°C | -40°C ~ 180°C | -40°C ~ 180°C |
