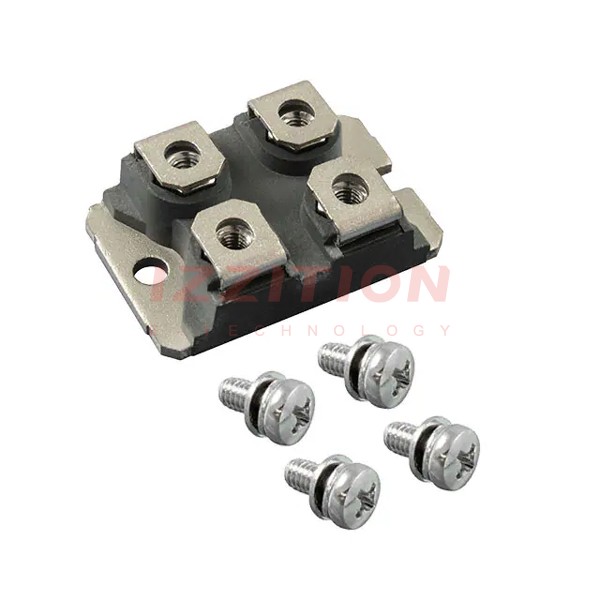

IXYS-DSA300I45NA - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	45 V
Current - Average Rectified (Io):	300A
Voltage - Forward (Vf) (Max) @ If:	840 mV @ 300 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	3 mA @ 45 V
Capacitance @ Vr, F:	16500pF @ 5V, 1MHz
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227B
Operating Temperature - Junction:	-

IXYS DSA300I45NA
