IXYS-DSA15IM45IB - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	45 V
Current - Average Rectified (Io):	15A
Voltage - Forward (Vf) (Max) @ If:	750 mV @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	300 µA @ 45 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package:	TO-262 (I2PAK)
Operating Temperature - Junction:	-55°C ~ 175°C

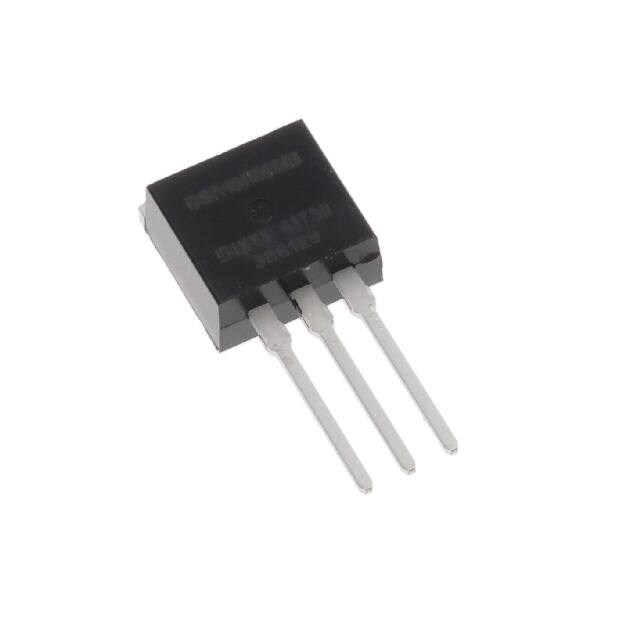

IXYS DSA15IM45IB
