IXYS-DS17-08A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Avalanche
Voltage - DC Reverse (Vr) (Max):	800 V
Current - Average Rectified (Io):	25A
Voltage - Forward (Vf) (Max) @ If:	1.36 V @ 55 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	4 mA @ 800 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis, Stud Mount
Package / Case:	DO-203AA, DO-4, Stud
Supplier Device Package:	DO-203AA
Operating Temperature - Junction:	-40°C ~ 180°C

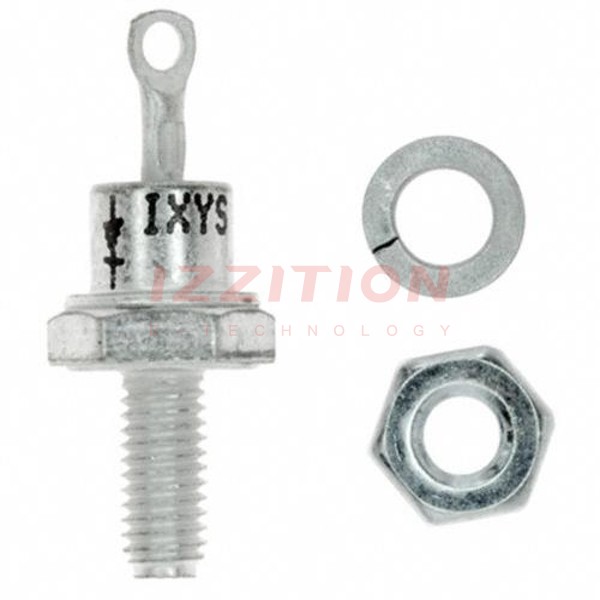

IXYS DS17-08A
