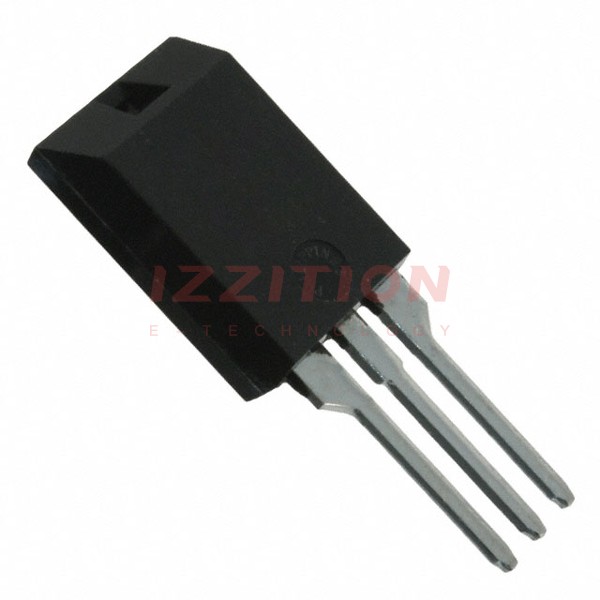

IXYS-DPG10P400PJ - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io) (per Diode):	10A
Voltage - Forward (Vf) (Max) @ If:	1.28 V @ 10 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	45 ns
Current - Reverse Leakage @ Vr:	1 µA @ 400 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	ISOPLUS220™
Supplier Device Package:	ISOPLUS220™

IXYS DPG10P400PJ
