IXYS-DPF60IM400HB - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	1.27 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	1 µA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole

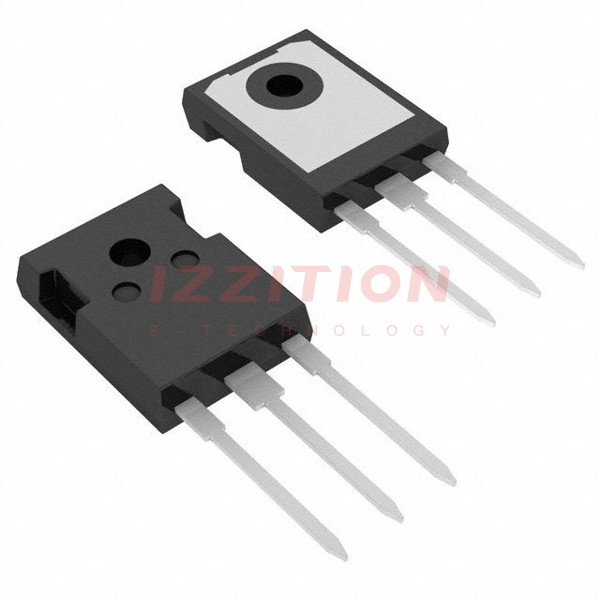

Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD
Operating Temperature - Junction:	-55°C ~ 175°C

IXYS DPF60IM400HB
