| Part Number | DNA30E2200PZ-TRL | DNA30EM2200PZ-TRL |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2200 V | 2200 V |
| Current - Average Rectified (Io) | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.26 V @ 30 A | 1.26 V @ 30 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 40 µA @ 2200 V | 40 µA @ 2200 V |
| Capacitance @ Vr, F | 7pF @ 700V, 1MHz | 7pF @ 700V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |

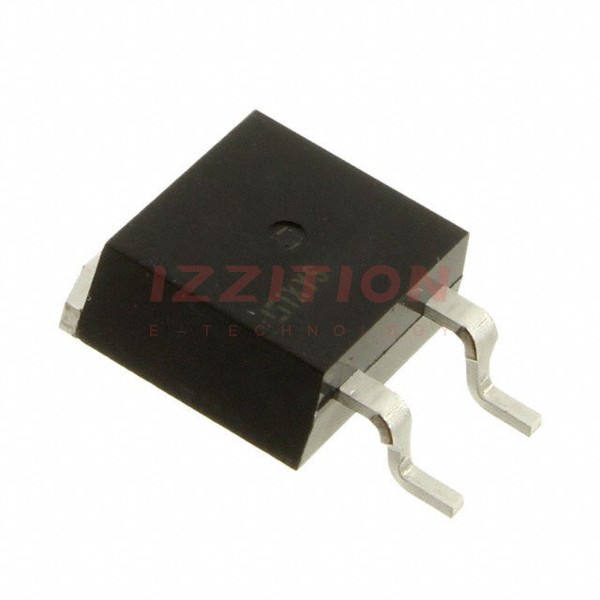

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2Pak) | TO-263AA |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C |
