IXYS-DMA80IM1600HB - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1600 V
Current - Average Rectified (Io):	80A
Voltage - Forward (Vf) (Max) @ If:	1.17 V @ 80 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	40 µA @ 1600 V
Capacitance @ Vr, F:	43pF @ 400V, 1MHz
Mounting Type:	Through Hole

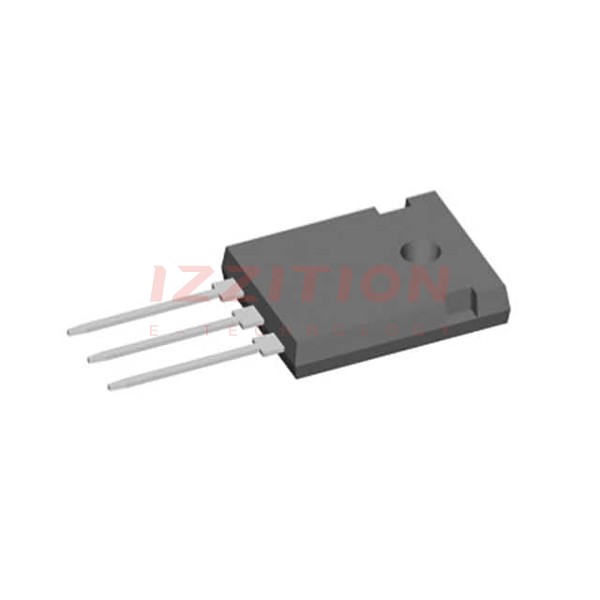

Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXTH)
Operating Temperature - Junction:	-55°C ~ 150°C

IXYS DMA80IM1600HB
