IXYS-DMA50P1200HR - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io) (per Diode):	50A
Voltage - Forward (Vf) (Max) @ If:	1.31 V @ 50 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	40 µA @ 1200 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Through Hole

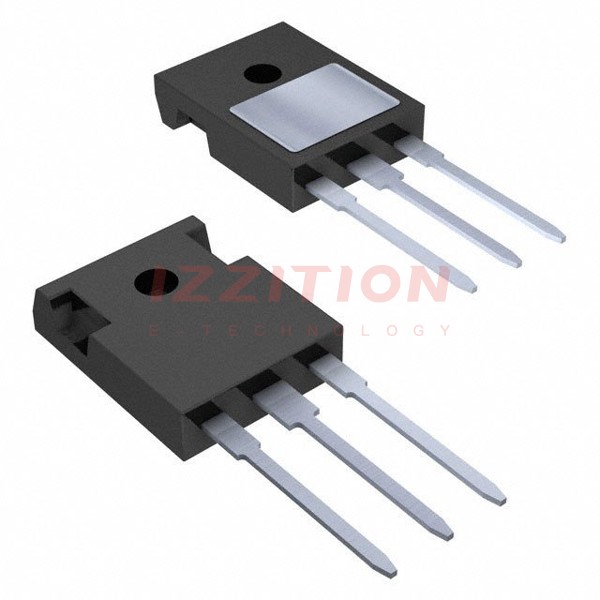

Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXTH)

IXYS DMA50P1200HR
