IXYS-DMA30E1800HA - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1800 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 30 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	40 µA @ 1800 V
Capacitance @ Vr, F:	10pF @ 400V, 1MHz
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247
Operating Temperature - Junction:	-55°C ~ 175°C

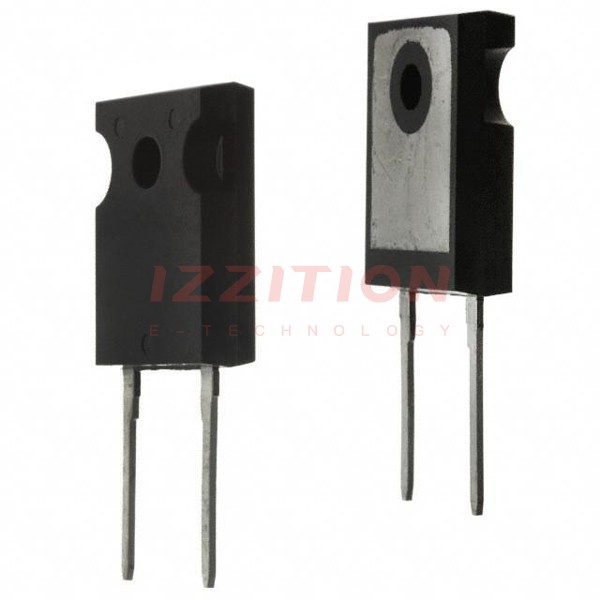

IXYS DMA30E1800HA
