IXYS-DLA100IM1200TZ-TUB - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	1.2 kV
Current - Average Rectified (Io):	100 A
Voltage - Forward (Vf) (Max) @ If:	1.34 V @ 100 A
Current - Reverse Leakage @ Vr:	20 µA @ 1200 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:	TO-268AA (D3Pak-HV)

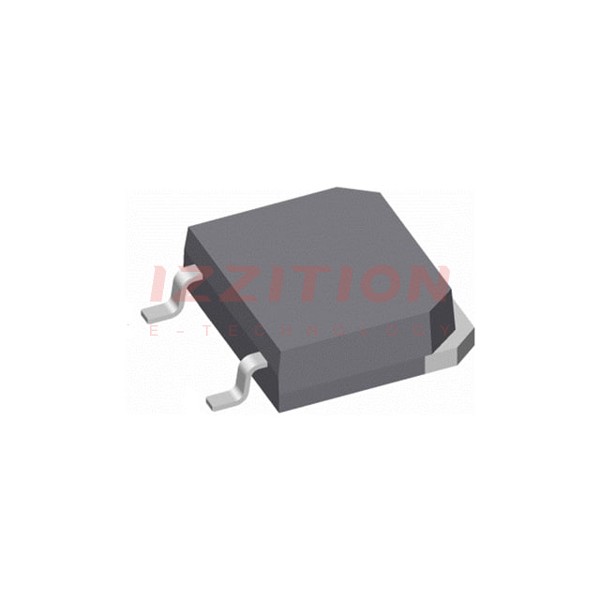

IXYS DLA100IM1200TZ-TUB
