IXYS-DHG5I600PA - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	5A
Voltage - Forward (Vf) (Max) @ If:	2.2 V @ 5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	35 ns
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220AC
Operating Temperature - Junction:	-55°C ~ 150°C

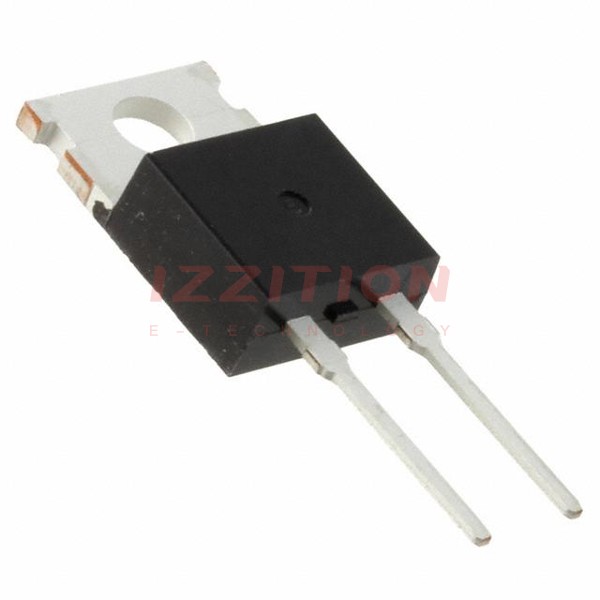

IXYS DHG5I600PA
